Modern Micro Perforated Acoustic Wall Panels with Veneer Finish for Meeting Rooms

  • Modern Micro Perforated Acoustic Wall Panels with Veneer Finish for Meeting Rooms
  • Modern Micro Perforated Acoustic Wall Panels with Veneer Finish for Meeting Rooms
  • Modern Micro Perforated Acoustic Wall Panels with Veneer Finish for Meeting Rooms
  • Modern Micro Perforated Acoustic Wall Panels with Veneer Finish for Meeting Rooms
  • Modern Micro Perforated Acoustic Wall Panels with Veneer Finish for Meeting Rooms
  • Modern Micro Perforated Acoustic Wall Panels with Veneer Finish for Meeting Rooms
  • Modern Micro Perforated Acoustic Wall Panels with Veneer Finish for Meeting Rooms
Place of Origin Guangzhou,china
Markenname WINEGO
Zertifizierung CE,FSC,France A+
Model Number PAE2.2/0.5-12/15
Minimum Order Quantity 100 SQM
Packaging Details 122*244*4cm per carton or other, LOGO service for big order
Delivery Time 2 weeks
Payment Terms TT :50% deposit Balance before shipment
Supply Ability 10000sqm per week

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skypen: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Sound Absorption 0.8 NRC Material Red fire-resistant MDF/Standard MDF/
Size W600/1200*L600/1200/2400*T12/15/18mm Application Commercial Buildings, Auditoriums, Theaters
Perforation Pattern Micro Acoustic Performance Highly Effective
Finish Veneer Color WINEGO Color card
Hinterlass eine Nachricht
Produkt-Beschreibung

Modern Micro Perforated Acoustic Wall Panels with Veneer Finish for Meeting Rooms





Description:

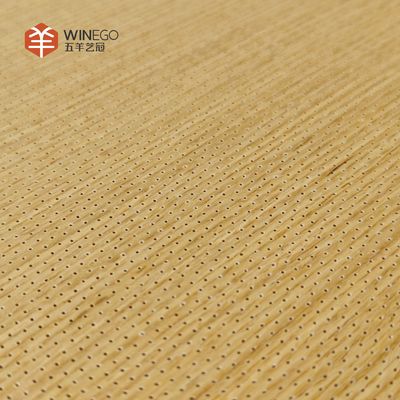

This advanced micro-perforated panel is engineered for optimal sound absorption through strategically placed holes measuring 0.4 to 1mm in diameter. These tiny openings, combined with precision rear cavities, generate Helmholtz resonance effects to diminish reverberation and noise across a broad frequency range. Crafted from premium sustainable materials, the panel complies with modern fire safety and eco-standards. With a choice of decorative veneers or melamine coatings, it balances acoustic function with aesthetic flexibility for use in conference halls, offices, studios, and upscale residences.



Feature:



Broad Frequency Absorption: Tailored to reduce echo and ambient noise across mid to low frequencies using Helmholtz resonator principles.



Architectural Adaptability: Easily mounts to ceilings and walls while maintaining the design integrity of the room.



Eco and Fire Safe: Made from fire-rated materials with minimal environmental impact, aligning with green building standards.



Customizable Appearance: Wide array of textures, finishes, and panel dimensions for bespoke design integration.






Specifications:

NAME Micro-Perforated acoustic panel
FINISH Veneer/Melamine/HPL fire-proof/PU paint
BASE MATERIALS MDF/A grade MGO/Solid wood
MODEL

PAE3/1-12/15,other customized model
Size

W590/1200*L590/1200/2420*T15/18mm
environmental protection E1
warranty 2 years
INSTALL Keel/Nail gun
MIN.ORDER  100 SQM
PACKAGE DETAILS

W1200mm*L2400mm*T 14mm: 2 pieces per pack,the size of the single package is W1220m*L2415mm*T40mm,95.4kg per pack.
W900mm*L1200mm*T 14mm: 4 pieces per pack,the size of the single package is W920m*L1220mm*T75mm,69.2kg per pack.
W1200mm*L3000mm*T 15mm: 2 pieces per pack,the size of the single package is W1220m*L3020mm*T47mm,83.2kg per pack.
W1200mm*L2420mm*T 15mm: 2 pieces per pack,the size of the single package is W1220m*L2445mm*T50mm,71kg per pack.
Delivery time  2 weeks
Original place  Guangzhou,china
Payment term

TT :50% deposit
Balance before shipment
Additional service  OEM
NRC 0.8
Certificate CE,FSC,France A+
Brand WINEGO
Project Solution Capability Project Design,3D model design,Graphic design,Material Production,Shipping and Deliver
Design Style Modern
After-sale Service Online technical support,Return and Replacement,Installation Instruction
